- Pressure range: 37.8~368.5kPaA
- Safety Pressure：848kPa
- Burst Pressure：1.117MPa
- Working Temperature Range：-40°C~135°C
- Power Supply：5±0.5V
- Output Voltage：0~4.795VDC
- Accuracy Range：±3% @ -40℃~135℃
- Installation Position：Above the exhaust pipe or in front of turbocharger

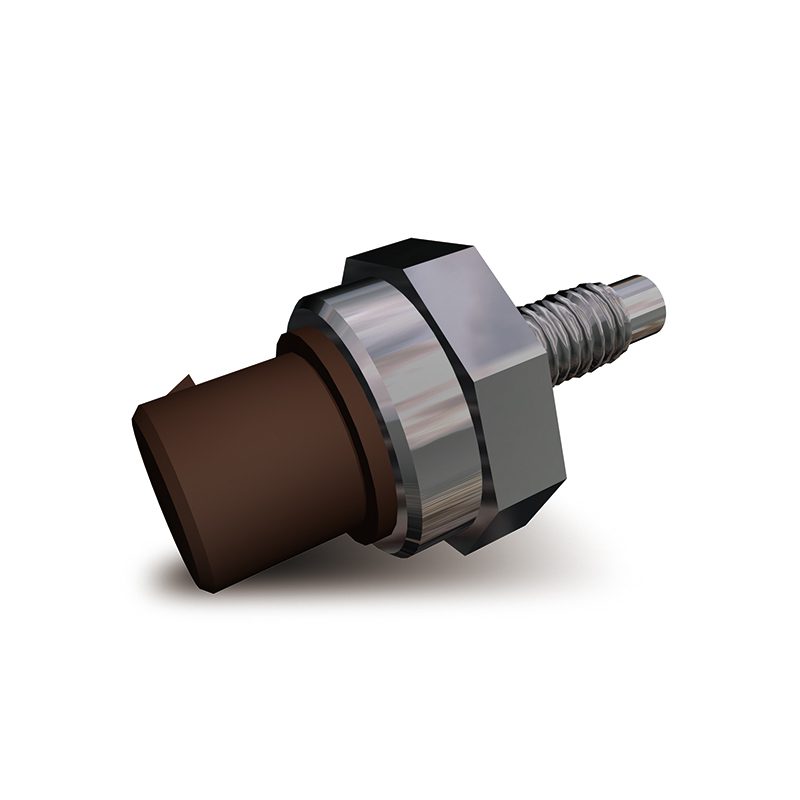

SST-Exhaust Back Pressure Sensor
- Model: EBP
- To measure the exhaust back pressure of engine and output to ECU to figure out the engine loading to further adjust EGR rate.EBP Key Features
- High measurement accuracy, ECU can accurately measure the exhaust pressure of the engine
- The product has good reliability and long service life, suitable for working in the harsh environment of automobile systems
- Ceramic capacitor structure; better compatibility with measurement medium and is not sensitive to the sulfur of waste gas.
