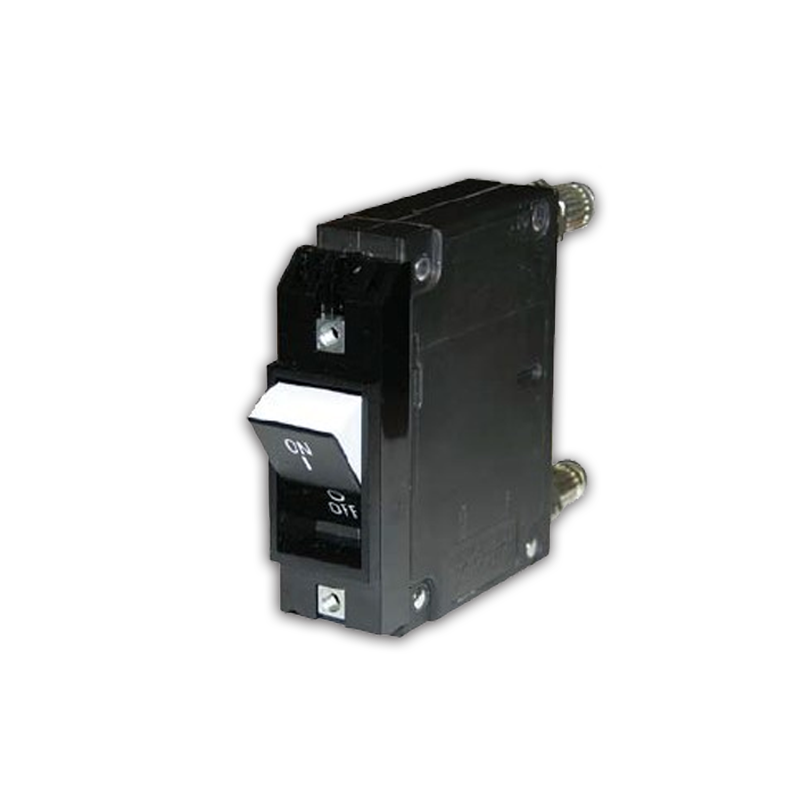

• IEG type must meet IEC clearance requirements for installation, and comply with IEC 601, 950, VDE0730, 0804 and 0805 specifications.
• Multi-level with multi-handle or single-handle actuator.
• Auxiliary switch is optional.
• Sealed Toggle handle available.
• Embedded installation is optional.
• Various handles are available.
• Dual Frequency Delay Options.
• Rating Voltage :
• • 0.05 to 100 amps, 65VDC
  • 0.05 to 70 amps, 80VDC
  • 0.05 to 50 amps, 250VAC
  • 0.05 to 50 amps, 300VAC
  • 0.05 to 70 amps, 240VAC (50/60Hz)
  • 0.05 to 50 amps, 277VAC (50/60Hz)
  • 0.05 to 50 amps, 277/480VAC (50/60Hz)
  • 0.05 to 50 amps, 250VAC (400Hz)
• Interrupt Capacity:
• • 5000amps，240VAC，50/60Hz
  • 1500amps，250VAC，400Hz
  • 7500amps，80VAC
  • 2000amps，240VAC，50/60Hz (VDE)
  • 2000amps，415VAC，50/60Hz (VDE)
  • 4000amps，80VAC (VDE)
  • 1200amps，277/480VAC，50/60Hz
  • 5000amps，250VAC
  • 1000amps，300VAC
